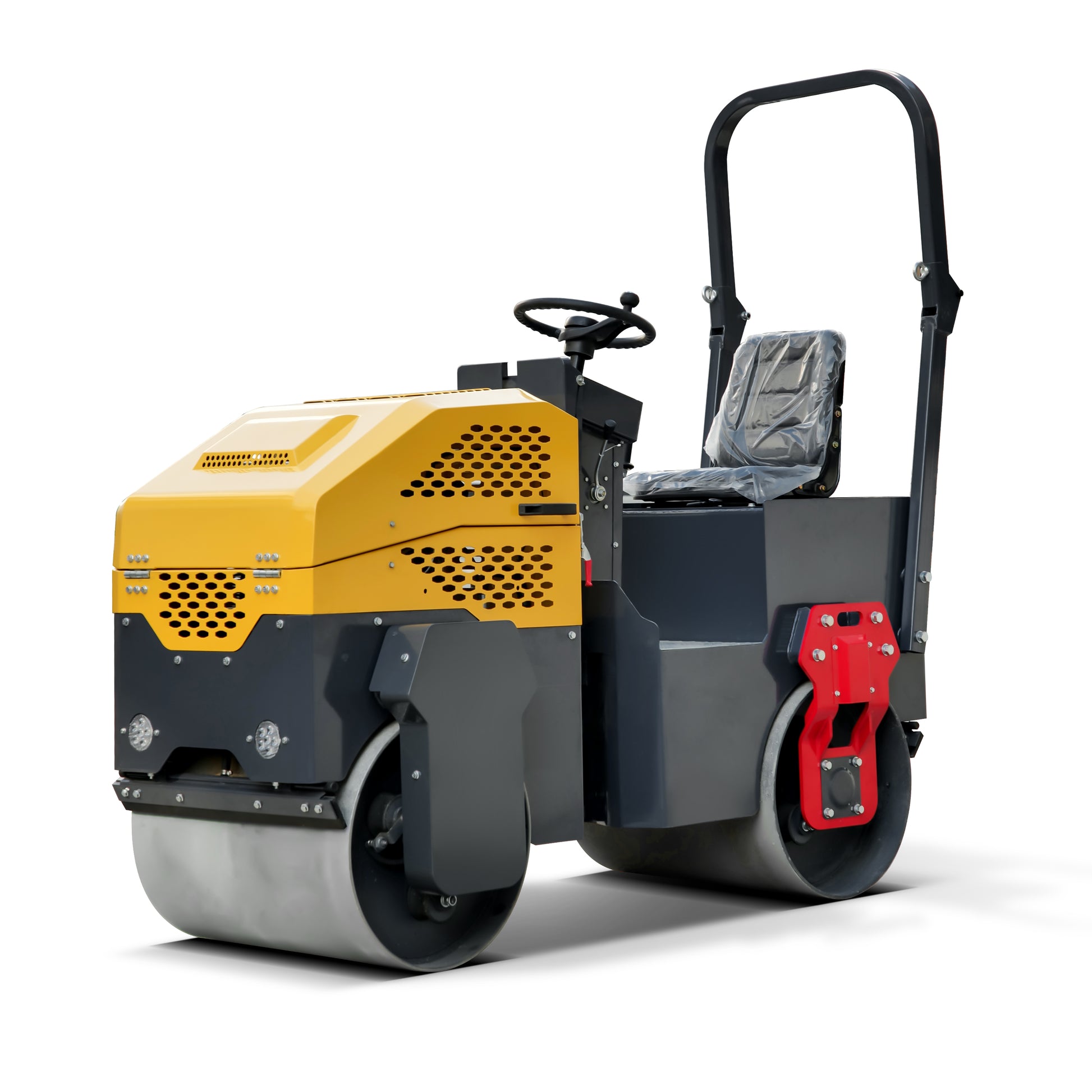

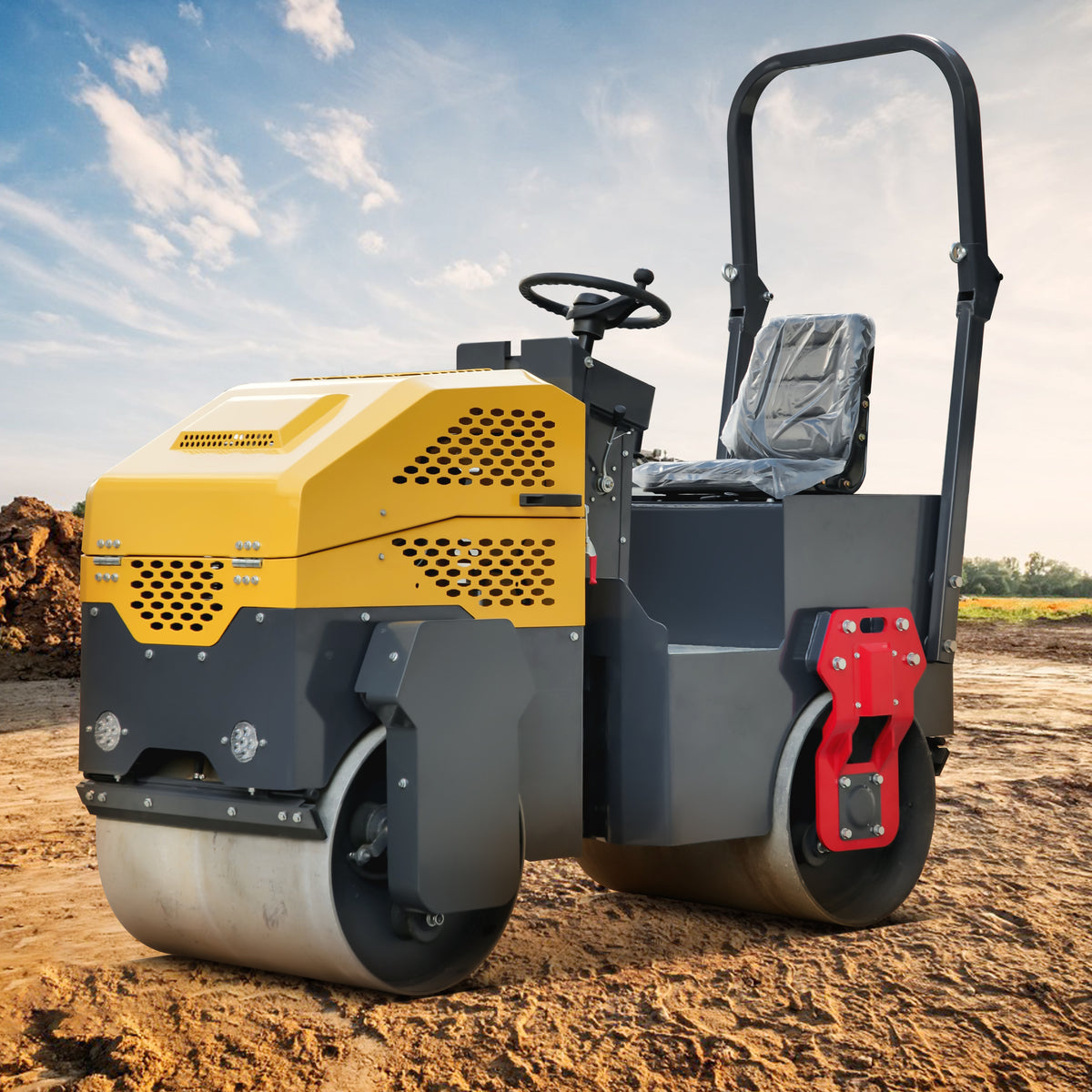

MS1000 Rato Engine 1.0 ton Fully Hydraulic Road Roller, Hydraulic Vibrating, Double Steel Wheel
MS1000 Rato Engine 1.0 ton Fully Hydraulic Road Roller, Hydraulic Vibrating, Double Steel Wheel
This machine is packed in a wooden box and requires a forklift to unload. If you don't have a forklift, please choose unload service.
Pickup is available at Our Warehouses
Cost-Effective: Lower production costs from our China-based factory.
One-Stop Shop: Wide range of compact construction machinery.
Top Quality: CE, SGS, TUV, ISO certified products.
Durable Attachments: Compatible with most compact excavators and skid steer loaders.
Exceptional Support: Professional sales and maintenance teams.
Free U.S. Shipping: Convenient and cost-free delivery.
Share
- Free Shipping Shipping within 7 days
- 1-Year Warranty Lifetime Tech Support
- User Manual Download now

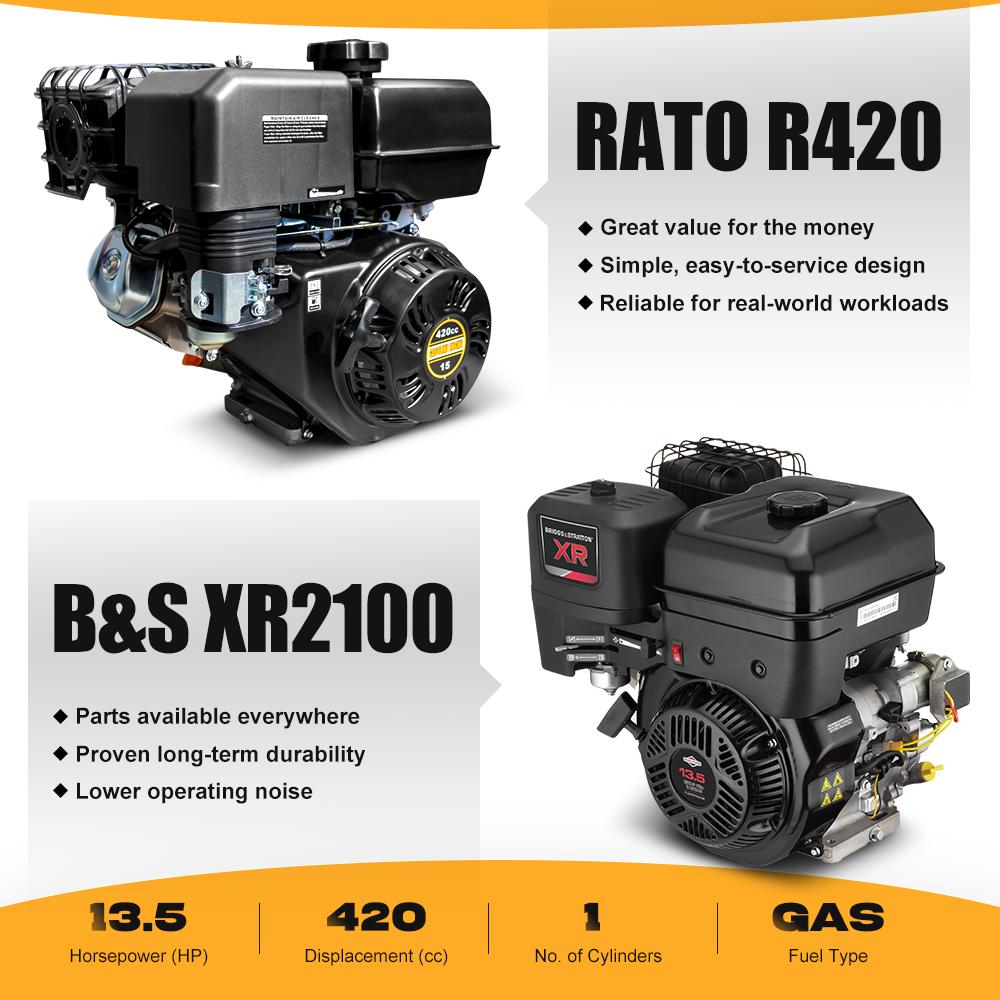

High Power Engine
This raod roller is powered by a premium RATO 13.5HP engine with up to 9.5KW of power for powerful yet fuel-efficient operation and superior heat distribution. Bid farewell to grating vibrations, savor flawless functioning, and anticipate its longevity.
Brand Walking Motor
This machine uses brand cycloid hydraulic motor, front and rear two-wheel drive walking, small operating radius, simple operation, and flexible rotation, has strong climbing walking ability. Widely used for compacting asphalt surfaces, compacting engineering foundations such as gravel and sand, and rolling lawns and playgrounds. Adapt to more different working conditions and improve construction efficiency.

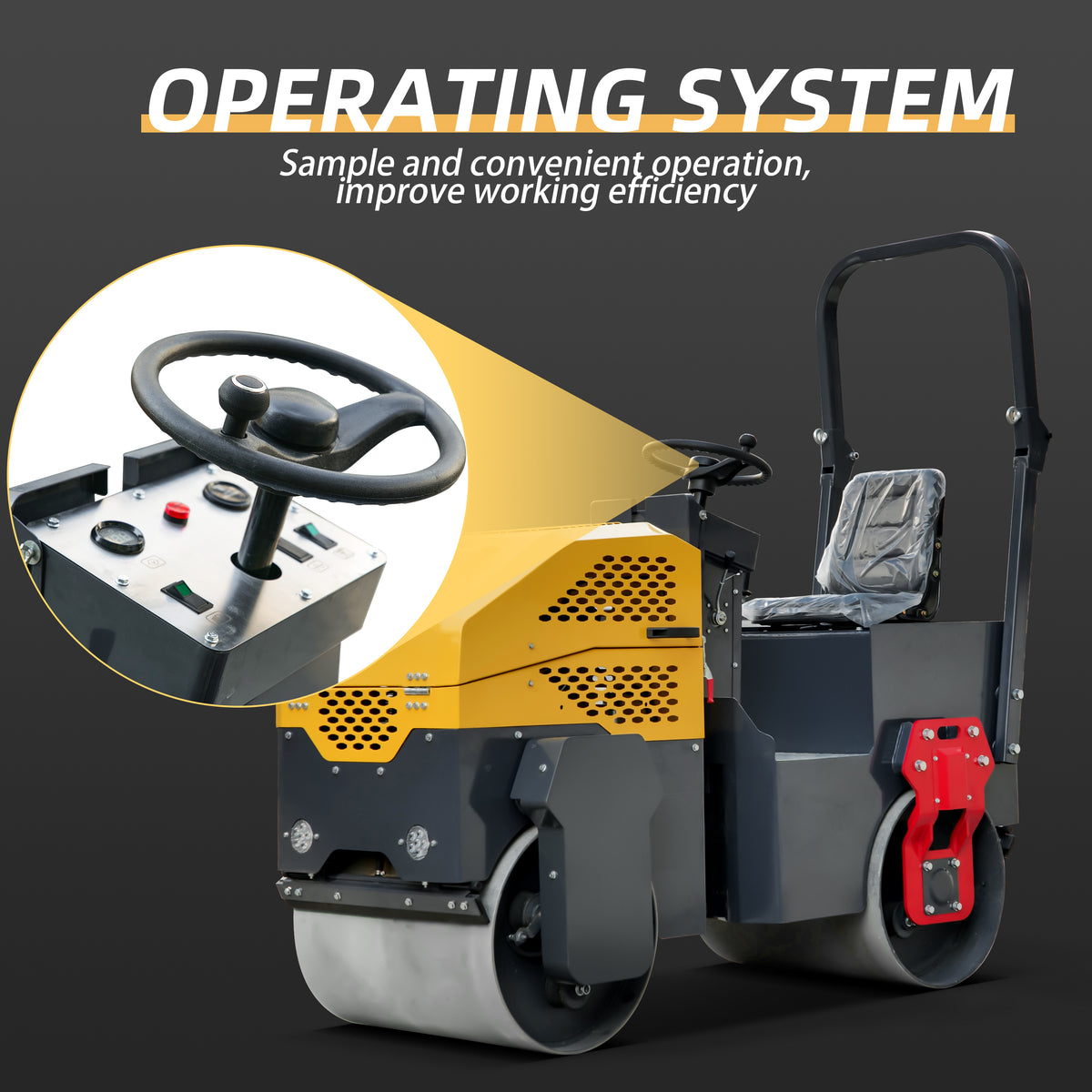

Hydraulic Steering
The front and rear frames are hinged, which are more connected, the swing angle is large, and it is not easy to overturn. Hydraulic power steering, light steering.
Scraper And LED Light
It comes with scraper,which could prevent dirt and asphalt from accumulating on the steel wheel, making compaction smoother.
Front and rear dual LED high-efficiency lighting, more convenient for nighttime construction.
Big Water Tank With Lid
There is a large capacity plastic water tank at the back of the machine, beautiful and generous, the water tank lid is located behind the seat, the lid is easy to open, and it is more convenient to add water.
Sturdy and Durable
The main body of the machine and the steel wheel are connected with Q235B steel plate, which is strong and durable, and this support plate has the effect of shock absorption, which could improve the working comfort of the driver.

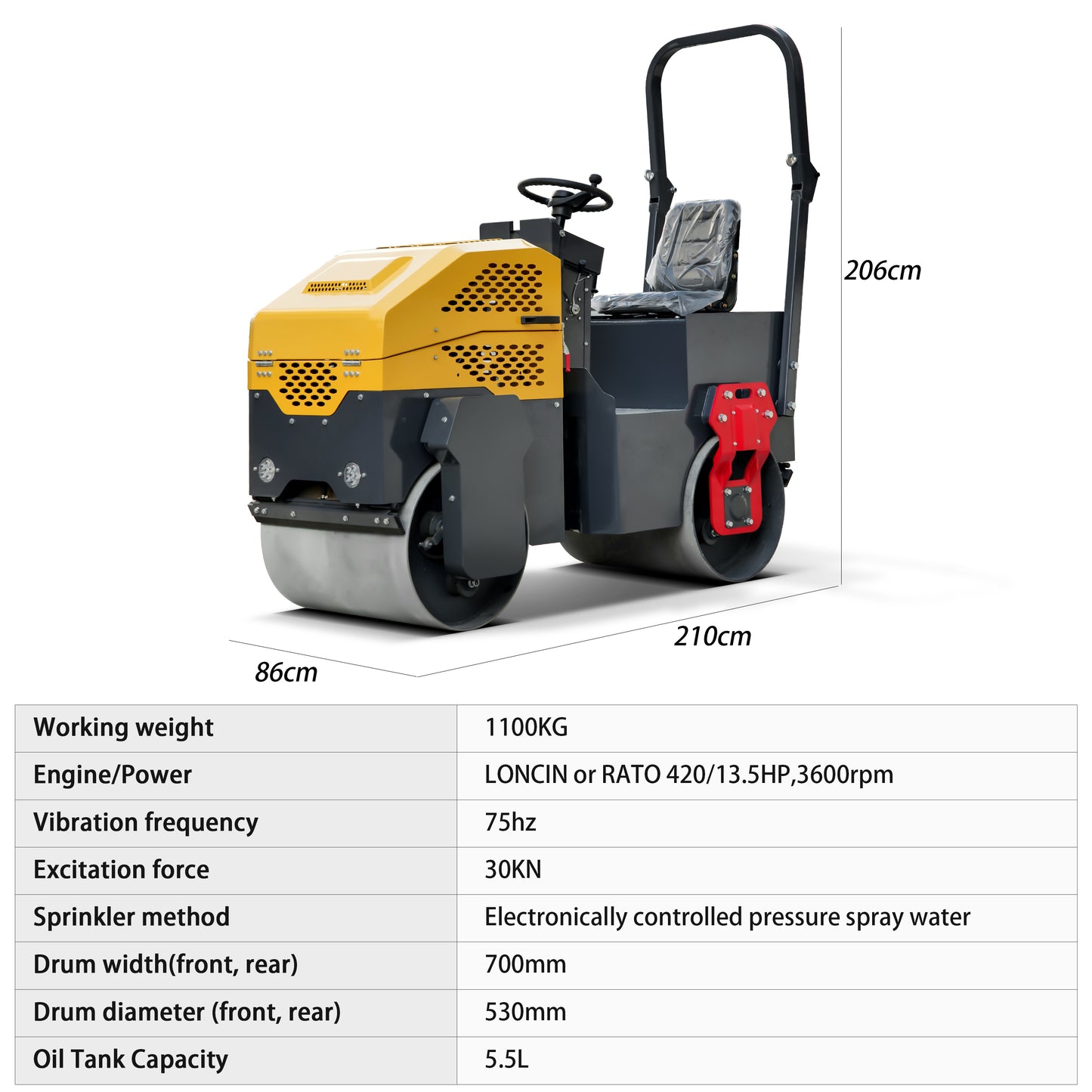

Parameters
-
Specification:
- Velocity: 0-8km/h
- Turning radius: 2000mm
- Climbing ability:30%
- Climbing ability: 77/56N/cm
- Nominal amplitude: 0.5mm
- Vibration frequency: 75Hz
- Excitation force: 30kN
- Vibration: One-key vibration -electromagnetic clutch
- Veer: Hydraulic steering
- Sprinkler method: Electronically controlled pressure spray water
- Motor: RATO 420
- Type: Gasoline
- Power: 13.5HP
- Oil Tank capacity: 5.5L
- Water Tank Capacity: 65L
- Fuel consumption: 300g/kw·h
- Drum width (front, rear): 700mm
- Drum diameter (front, rear): 530mm
- Overall length: 2100mm
- Total width: 860mm
- Total height.(excluding impact beam): 1600mm
- Export packaging size: 2200*950*1650mm
- Working weight: 1100kg
-
Package list:
- 1x Road Roller
- 1x Tool Box
